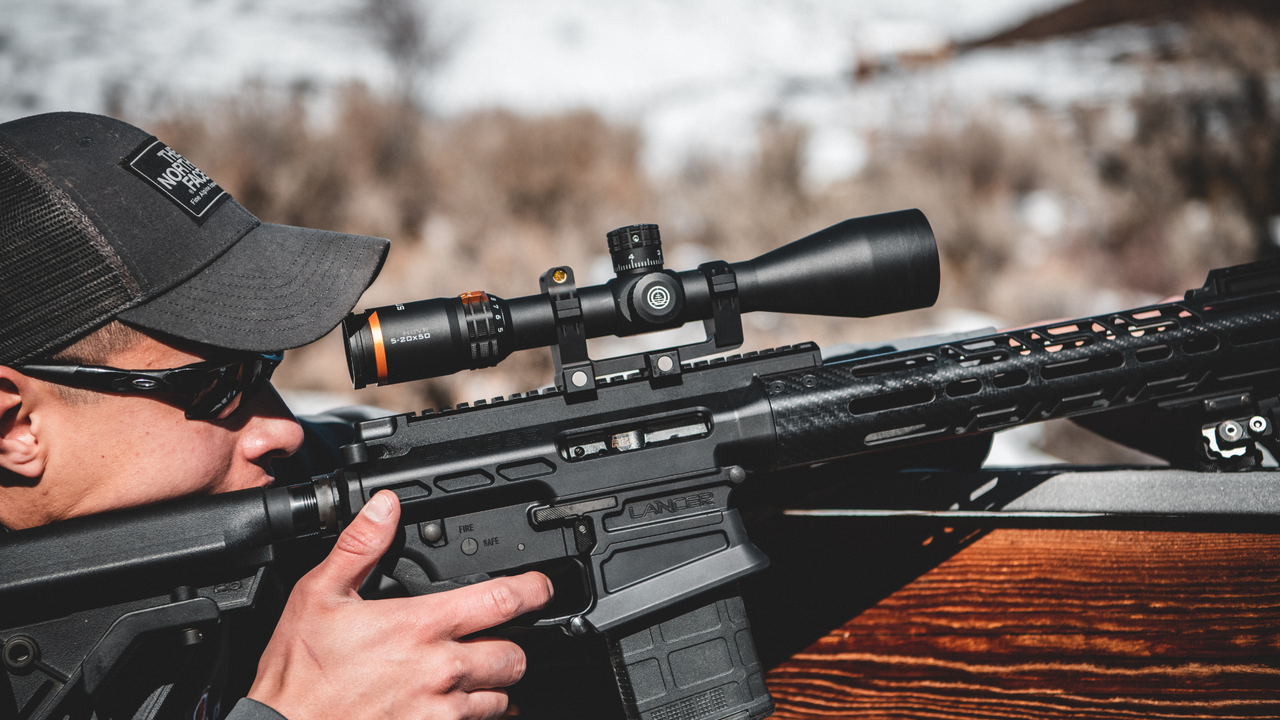

Rifle equipped with a HoVR 5-20 optic TREMOR5 reticle dimensions diagram

Competition Optimized Reticle

TREMOR5™

Streamlined for competition speed, the TREMOR5™ offers a cleaner MRAD grid layout, while preserving the core TREMOR advantages.

TREMOR5™ at a glance

Simpler FOVCompared to TREMOR3™
Wind DotsWind Hold Compensation
0.1 MilsMilling chevrons
0.2 MRADHorus grid

Reticle focus

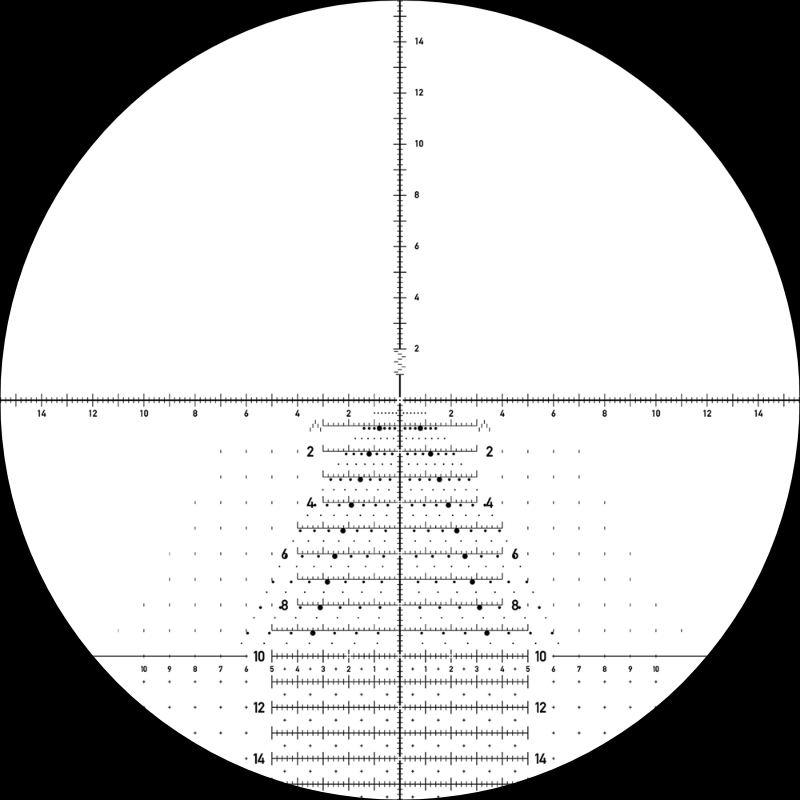

TREMOR5™ Competition Optimized Reticle

Labeled TREMOR5 reticle dimensions diagram

Reticle technology

Inside the TREMOR5™ Reticle

Designed for advanced elevation & windage compensation, the uniform 0.2 milliradian Horus Grid gives shooters precise aiming points for elevation, wind, and fast second-shot corrections without holding in empty space.

TREMOR5 Horus Grid callout diagram

The Time-Of-Flight Wind Dots system provides accurate wind holds in common wind speed values (mph, kph, m/s). By eliminating the need to count subtensions or rely on a ballistic solver for every shot, in-reticle wind dots deliver a universal solution that easily calibrates to any ballistics and density altitude.

TREMOR5 wind dot callout

Highly-Refined Mil Markers: These precision MRAD “Chevron” markers located in Horus and TREMOR reticles subtend to 0.1 milliradians for exact target range estimation. Use the vertical Chevrons for milling target height and the horizontal Chevrons for milling target width.

TREMOR5 refined mil marker callout

Compatible products

Optics built for TREMOR5™

HoVR® 5-20x50mm Riflescope

HoVR® 5-20x50mm Riflescope

$1499.99

Available reticles: H59™-MOA, TREMOR3™, TREMOR5™, TREMOR9™.

Shop Scope
HoVR® Complete Shooter Package

HoVR® Complete Shooter Package

$1769.99

Optic kit includes riflescope, laser rangefinder and weather meter. Now with onX Hunt Waypoint integrations.

Shop Scope Kit
Horus TREMOR5 reticle simulator

Training tool

Reticle Simulator

Practice TREMOR5™ holds, wind dots, and second-shot corrections before ever firing a shot.

Try the Simulator

Ballistic Tools

The Horus Ballistics App

Build better firing solutions with range and atmospherics. Now with onX Hunt Waypoint integrations.

Reticle FAQ

TREMOR5™ questions

TREMOR5™ is a competition optimized TREMOR reticle. It keeps the 0.2 MRAD Horus Grid, Time of Flight Wind Dots, and refined milling chevrons from the TREMOR workflow while giving the shooter a cleaner field of view.

    TREMOR5™ is built for precision rifle and competition shooters who need fast holds across multiple target distances without the extra visual information used for rapid ranging or moving target leads.

      Use TREMOR5™ when the priority is wind calls, second-shot corrections, and repeatable holdover references in a less crowded reticle.

        TREMOR5™ removes the Rapid Range Bars and moving target holds found in TREMOR3™. That tradeoff keeps the most used grid, wind, and milling tools while reducing visual clutter for competition use.
